Cell-assisted lipotransfer (CAL): supportive use of human adipose-derived cells
for soft tissue augmentation with lipoinjection

Tissue Engineering, in press.



Introduction
It has been revealed that adipose-derived stromal (stem) cells (ASC) can be obtained from liposuction aspirates1,2 and differentiate into multiple lineages of mesodermal or ectodermal origins. Human ASCs, which are also called pre-adipocytes or vascular stromal cells, were shown by a number of in vitro and in vivo studies to differentiate into adipogenic, osteogenic3-7, chondrogenic8-10, myogenic11,12, cardiomyogenic13,14, and neurogenic15-17 lineages. Adipose tissue is known to be rich in microvasculature18, and ASCs were shown to have angiogenic characteristics and to differentiate into vascular endothelial cells experimentally19-21. Human ASCs are distinct from other mesenchymal progenitors in surface marker expression profile; notably only ASCs express stem-cell?associated marker CD34 in higher percentages compared to bone-marrow?derived mesenchymal stem cells and dermal fibroblasts22.
ASCs are currently being used in clinical trials, including studies investigating bone defect23 (fresh ASCs) and rectovaginal fistula24 (cultured ASCs) treatments and soft tissue augmentation (our unpublished data; fresh ASCs). If ASCs are harvested from a large volume (e.g. 1 L) of liposuction aspirates, ASCs can be used clinically without cell expansion because a sufficient number can be obtained. Furthermore, the use of minimally manipulated fresh cells may lead to higher safety and efficacy in actual treatments.
Aspirated fat is also used as injection material for soft tissue augmentation for the purpose of reconstruction of inborn or acquired tissue defects or cosmetic treatments such as breast enhancement or facial rejuvenation. Although lipoinjection has some problems to be resolved, such as unpredictability and a low survival rate due to partial necrosis25,26, it is almost the only method of soft tissue augmentation that can be performed without detectable scarring on either a donor or a recipient site and without complications associated with foreign materials. Thus, if the clinical efficacy and safety of the procedure can be improved, it could be a strong cosmetic and reconstructive tool for soft tissue augmentation.
Here, we provide evidence to support a novel method of autologous tissue transfer, which we named cell-assisted lipotransfer (CAL). CAL is a concurrent transplantation of aspirated fat and ASCs; in other words, it is a transplantation of ASC-rich aspirated fat. In CAL, ASCs were supportively used to boost the efficacy of autologous lipoinjection, meaning a higher survival rate and persistency of transplanted fat, and to decrease known adverse effects of lipoinjection such as formation of fibrosis, pseudo-cyst, and calcification. In this study, aspirated fat was compared to excised whole fat (non-aspirated fat) in micro- and electromicroscopic histology and adherent cell yields. In addition, we evaluated the effectiveness of CAL in animal models compared to non?cell-assisted lipotransfer (non-CAL), and examined the fate of ASCs in fat transplanted with the CAL method.


Materials and Methods

Human Tissue Sampling
We obtained liposuction aspirates from healthy female donors undergoing liposuction of the abdomen or thighs after informed consent using an IRB-approved protocol. From 3 patients who underwent both liposuction and tummy tuck, an excised adipose tissue (20?30 g) was also taken. Aspirated fat was used as the cell source of SVFs containing ASCs. The excised fat obtained from tummy-tuck patients was also used for isolation of SVFs. Both the aspirated fat and the excised fat were also used for histological examination.

Cell isolation and culture
SVF was isolated from the fatty portion of liposuction aspirates using a procedure modified from Zuk and colleagues1. Briefly, the aspirated fat was washed with PBS and digested on a shaker at 37 oC in PBS containing 0.075% collagenase for 30 min. Mature adipocytes and connective tissues were separated from pellets by centrifugation (800 × g, 10 min). The pellets were resuspended and filtered with a 100-μm mesh (Millipore, MA, USA). Freshly isolated SVF was plated (30,000 cells/cm2) on gelatin-coated dishes and cultured at 37 oC in an atmosphere of 5% CO2 in humid air. The culture medium was M-199 containing 10% FBS, 100 IU penicillin, 100 mg/mL streptomycin, 5 ng/mL heparin, and 2 ng/mL acidic FGF. After 7 days, attached cells were passaged by trypsinization and cultured in the same medium. Medium was replaced every third day. The excised fat from tummy-tuck patients was first minced with scissors into small pieces (3 mm) and then processed in the same manner as aspirated fat.

Mouse models for transplantation of human aspirated fat
Seven-week-old male SCID mice housed with free access to water and standard chow diet were anesthetized by intraperitoneal injection of 5 mg/mL isopentane. Human aspirated fat (1 mL = 900 mg) was subcutaneously injected into the back of SCID mouse with or without freshly isolated SVF cells. For CAL, SVFs taken from 4 mL of aspirated fat was mixed with 1 mL of aspirated fat. Four weeks later, transplanted fat was harvested, weighed, and fixed with 4% paraformaldehyde, and 4-μm sections were stained with hematoxylin?eosin.

Mouse models for tracing human SVF cells in CAL
For tracing the SVFs, SVF cells freshly isolated from human aspirated fat were labeled by incubated with 5 μg/mL CM-DiI (Molecular Probe, Eugene, Oregon) for 1 hour before transplantation. DiI-labeled SVFs taken from 4 mL of aspirated fat was mixed with 1 mL of aspirated fat and then injected under the back skin of a SCID mouse. In the same manner, human aspirated fat was injected without DiI-labeled SVFs as control. Four weeks later, transplanted fat was harvested, fixed with 4% paraformaldehyde, and embedded in OCT compound by freezing in isopentene cooled with liquid nitrogen. Then, 20-μm thick frozen sections were examined with a confocal microscope system (Leica TCS SP2, Leica Microsystems GmbH, Wetzlar, Germany).

Rat models for tracing rat GFP-labeled SVF in CAL using rat minced fat
Inguinal adipose tissue excised from GFP rats [SD TgN(act-EGFP)OsbCZ-004; generated from Sprague-Dawley (SD) rats] was processed in the same way as human excised fat. GFP-SVF taken from 1 mL of fat of the GFP rat was mixed with minced inguinal adipose tissue (1 mL) harvested from SD rats and then injected under the back skin of an SD rat. Four weeks later, transplanted fat was harvested and forwarded to immunohistology as well.

Immunostaining
Frozen sections were prepared from transplanted fat embedded in OCT compound. After fixation in 100% acetone for 10 min at 4 °C, sections were rehydrated and blocked with 0.5% goat serum in PBS. Paraffin-embedded sections were dewaxed, washed in PBS, and treated with Proteinase K (Dakocytomation, Carpinteria, CA) for 6 min and blocked with 0.5% goat serum in PBS. Primary and secondary antibody stainings were performed for 60 min each at room temperature. DAPI staining was performed with DAPI containing mounting medium (Vector laboratories, Burlingame, CA). The following antibodies and dilutions were used: anti-Green Fluorescent Protein (mouse, 1:500; Molecular Probes, Eugene, Oregon), von Willebrand factor (rabbit, 1:500; DakoCytomation), and Alexa Fluor 488 or Alexa Fluor 546 conjugated anti-mouse or anti-rabbit antibodies (goat, 1:200; Molecular Probes). Sections were imaged on a confocal microscope system (Leica TCS SP2, Leica Microsystems GmbH).

Scanning electron microscopic study
Aspirated and excised fat were fixed with 2% paraformaldehyde and 2.5% glutaraldehyde in 0.2 M cacodylate buffer for a week at room temperature, and then fixed in 1% osmium tetroxide. After dehydration, they were dried with a super critical point CO2 dryer (HCP-2, Hitachi, Tokyo, Japan), sputter-coated with Pt-Pd, and examined with a scanning electron microscope (S3500N, Hitachi).

Statistical analyses
Results were expressed as mean ± standard error. The data were statistically analyzed using an unpaired Student’s t-test. A value of p<0.05 was considered significant.


Results

Comparison in histology and ASC yield between aspirated fat and excised fat
Both aspirated fat and excised fat were harvested from the 3 patients who underwent the tummy-tuck operation. Histological examinations with a light microscope and scanning electron microscope showed that aspirated fat preserves basic structures of adipose tissue and mature adipocytes keep normal adhesions with each others. The only difference detected was that aspirated fat contained fewer vascular structures, especially those of large size, compared to excised fat.
The same weights of aspirated fat and excised fat were processed for isolation of SVFs. The cell isolation process was performed within two hours after harvest. The isolated SVFs were cultured for 1 week, and the numbers of adherent ASCs from the aspirated fat and the excised fat were counted and compared. In all 3 patients, the number of adherent ASCs at 1 week was larger in the excised fat than in the aspirated fat. The ratio of normalized ASC number from aspirated fat to that from excised fat was 0.48 ± 0.13 (n=3, mean ± S.E.) (Fig. 1b).

Human aspirated fat transplantation with or without SVF
Human aspirated fat was transplanted with or without freshly isolated SVFs containing ASCs taken from the same patient. The experiments were done three times using aspirated fat from three patients.
Transplanted adipose tissue with or without ASCs (CAL fat and non-CAL at) was 712.3 ± 45.3 mg (n = 10) or 520.6 ± 40.8 mg (n = 11), respectively, while fresh adipose tissue (1 mL) before transplantation was approximately 900 mg (Fig. 2a, 2b). Histology of transplanted fat samples showed that the central region was necrotic in non-CAL fat samples and the thickness of survived layer was greater in CAL fat than non-CAL fat (Fig. 2c). Microvasculature microscopically detected appeared to be prominent in CAL fat, especially in the outer layers, but not in non-CAL fat (Fig. 2c).

Fate of human ASCs transplanted with human aspirated fat
To trace human ASCs, SVFs freshly isolated from aspirated fat were labeled with DiI and then transplanted with human aspirated fat. In CAL fat, DiI-labeled ASCs were occasionally detected between mature adipocytes and in the connective tissue of the transplanted fat (Fig. 3). ASCs double-positive for DiI and vWF were detected in CAL fat, suggesting that some of transplanted ASCs were differentiated into vascular endothelial cells (Fig. 4).

Fate of ASCs derived from GFP rats in rat CAL models
To trace ASCs transplanted with fat, minced fat of SD rats was transplanted with (CAL) or without (non-CAL) SVFs isolated from the inguinal adipose of GFP rats (GFP-SVF) (Fig. 5a). In CAL fat, GFP-positive cells, which are supposed to be transplanted GFP-ASCs, were detected within connective tissue and in some vessels (Fig. 5b). Most of the vessels were derived from host (vWF-positive, GFP-negative), but vessels positive for both vWF and GFP were occasionally detected. GFP-positive cells covered partly or entirely the inner surface of vessels (Fig. 5b). It was suggested that some ASCs differentiated into endothelial cells and contributed to angiogenesis during the surviving process of the adipose transplantation.


Discussion
Adipose tissue is predominantly composed of extracellular matrix, mature adipocytes, ASCs, vascular cells such as endothelial cells, and mural cells such as pericytes and vascular smooth muscle cells. We recently reported the cell composition of SVFs freshly isolated from liposuction aspirates, which is important information for the clinical use of the SVFs. The SVF cells are composed of heterogeneous populations including blood-derived cells, which are composed of 50%-70% SVF cells. Adipose-derived cells (CD45- cells) in SVFs isolated from aspirated fat were of the following types: ASCs (70%-90%; CD31-CD34+CD45-CD90+CD105-CD146-), vascular endothelial (progenitor) cells (3%-9%; CD31+CD34+CD45-CD90+CD105low CD146+), pericytes (2%-5%; CD31-CD34-CD45-CD90+CD105-CD146+), and other cells. The cell composition of the SVFs was measured after the cell isolation process with collagenase digestion for 30 min, but not all of adipose-derived cells can be isolated from the SVFs in this process; thus, the cell composition may not accurately correspond to the actual cell composition of the adipose tissue. The location of ASCs in the adipose tissue is not clearly understood. Some ASCs are supposed to be located in the connective tissues in adipose, and others are located between adipocytes or around micro- or macrovasculature.
Liposuction aspirates consist of two parts: a floating fatty portion and an infranatant fluid portion. We have investigated cells derived from these two portions of liposuction aspirates and found that a significant number of adipose-derived cells, including ASCs and endothelial cells, can be isolated from the fluid portion, though the number from the fluid portion is smaller than that from the fatty portion. This finding supports a result of this study showing that aspirated fat is relatively stem-cell deficient compared to excised whole fat. The reason was not elucidated here, but mechanical injury during the liposuction procedure and digestion by endogenous proteases during the surgery or subsequent storage periods likely induces the release of ASCs from harvested aspirated fat into the fluid portion. In addition, as shown in this study, the basic structure of adipose tissue was preserved in the aspirated fat, but vascular vessels, especially larger ones, are significantly less detected in aspirated fat compared to excised fat. It is well known that the honeycomb structures of vascular and neural perforator networks are left intact in aspirated sites after liposuction operation (Fig. S1). Thus, it is reasonable that fewer ASCs, which reside also around capillaries and vessels, were isolated from aspirated fat, which does not contain larger vessels, than excised fat. Unlike our results, a recent study27 that compared viable cell yield from fresh aspirated versus fresh excised fat did not detect a significant difference. This finding was likely, however, because the study centrifuged the aspirated fat and removed fibrous structures and visible vessels from excised fat during the cell isolation process.
The results of the present study suggested that addition of ASCs to aspirated fat improved the efficacy of adipose transfer, though the exact mechanisms remain to be elucidated. By addition of ASCs to relatively ASC-poor fat (aspirated fat), the aspirated fat is theoretically converted to relatively ASC-rich fat. A recent study using fragmented omentum tissue suggested the effects of co-transplantation with preadipocytes, though the fragmented adipose tissue in that study was not ASC-poor28.
Partly based on the present data, we can speculate on the fate and roles of ASCs as follows. First of all, as shown in this study as well as in previous studies19-21, ASCs can differentiate into vascular endothelial cells that may contribute to neoangiogenesis during the healing process after transplantation. This effect may contribute to the decreased amount of central necrosis and marked microvasculature in the outer layers of CAL fat seen in this study.
Second, as suggested in this study, some ASCs were located between mature adipocytes and in the connective tissue of CAL fat, as they had been in normal fat before liposuction. They may play a role as adipose progenitor cells for future turnover of adipocytes. The relative deficiency of ASCs in aspirated fat compared to excised fat may contribute to the low long-term survival rate in non-CAL fat, which is a well-known clinical phenomenon25,26. This hypothesis is also supported by a recent study28 showing that fragmented omentum (mainly composed of adipose) with or without preadipocytes (ASCs) was transplanted and the postoperative atrophy of transplanted tissue was suppressed when transplanted with preadipocytes. As it was reported that adipocytes are replaced with the next generation every 1?2 years in normal adipose29, the relative deficiency of tissue-specific progenitor cells in non-CAL fat may affect the coming turnover of the tissue and lead to its long-term atrophy. Turnover of adipocytes may occur in the early stage after transplantation in transplanted adipose tissue because its vascularity was temporarily damaged; this outcome may be the reason atrophy of transplanted adipose is clinically seen during the first 3 months.
Third, some ASCs may differentiate into mature adipocytes and partly constitute transplanted fat. Although adipogenic differentiation of labeled ASCs was not detected in this study, the failure of detection may result from difficulty in detecting GFP-labeled cytoplasm of mature adipocytes, which are filled with lipid material; indeed, to our knowledge, there has been no previous report which clearly demonstrated labeled cytoplasm of mature adipocytes.
Fourth, transplanted ASCs were kept in a hypoxic condition in the acute phase after transplantation and may release angiogenic soluble factors such as VEGF and HGF, accelerating neoangiogenesis from the surrounding host tissue in a paracrine manner. It was reported that cultured human ASCs produce and release VEGF and HGF in a hypoxic condition30. This effect may also contribute to the decreased volume of central necrosis and more prominent microvasculature in the outer layers of the CAL fat seen in this study.
Surgical injury accompanying the transplantation and the subsequent hypoxic condition and wound healing process, including inflammatory reactions, appear to trigger ASC differentiation into specific lineages such as adipocytes, vascular endothelial cells, and mural cells. As ASCs are known to undergo adipogenic differentiation when co-cultured with mature adipocytes31, aspirated adipose tissue transplanted together with ASCs may contribute to acute adipogenic differentiation of ASCs.
In conclusion, aspirated fat contains less vasculature and fewer ASCs compared to excised fat. Transplanted aspirated fat survived better when transplanted with ASCs than without ASCs. These findings may partly explain why transplanted aspirated fat does not survive very well and suggest the clinical potential of the CAL method. Soft tissue augmentation with autologous fat, which leaves no incisional scar and lacks the complications associated with foreign materials, can be a cosmetically ideal tool when its effectiveness is improved.

Acknowledgment
GFP rats [SD TgN(act-EGFP)OsbCZ-004] were kindly provided by Prof. Masaru Okabe (Osaka University, Japan).

References

1. Zuk, P.A., Zhu, M., Ashjian, P., De Ugarte, D.A., Huang, J.I., Mizuno, H., Alfonso, Z.C., Fraser, J.K., Benhaim, P., and Hedrick, M.H. Human adipose tissue is a source of multipotent stem cells. Mol. Biol. Cell 13, 4279, 2002.
2. Zuk, P.A., Zhu, M., Mizuno, H., Huang, J., Futrell, J.W., Katz, A.J., Benhaim, P., Lorenz, H.P., and Hedrick, M.H. Multilineage cells from human adipose tissue: implications for cell-based therapies. Tissue Eng. 7, 211, 2001.
3, Halvorsen, Y.C., Wilkison, W.O., and Gimble, J.M. Adipose-derived stromal cells--their utility and potential in bone formation. Int. J. Obes. Relat. Metab. Disord. 24(Suppl 4), S41, 2004.
4. Dragoo, J.L., Samimi, B., Zhu, M., Hame, S.L., Thomas, B.J., Lieberman, J.R., Hedrick, M.H., and Benhaim, P. Tissue-engineered cartilage and bone using stem cells from human infrapatellar fat pads. J. Bone Joint. Surg. Br. 85, 740, 2003.
5. Cowan, C.M., Shi, Y.Y., Aalami, O.O., Chou, Y.F., Mar,I, C., Thomas, R., Quarto, N., Contag, C.H., Wu, B., and Longaker, M.T. Adipose-derived adult stromal cells heal critical-size mouse calvarial defects. Nat. Biotechnol. 22, 560, 2004.
6. Hicok, K.C., Du Laney, T.V., Zhou, Y.S., Halvorsen, Y.D., Hitt, D.C., Cooper, L.F., and Gimble, J.M. Human adipose-derived adult stem cells produce osteoid in vivo. Tissue Eng. 10, 371, 2004.
7. Peterson, B., Zhang, J., Iglesias, R., Kabo, M., Hedrick, M., Benhaim, P., and Lieberman, J.R. Healing of critically sized femoral defects, using genetically modified mesenchymal stem cells from human adipose tissue. Tissue Eng. 11, 120, 2005.
8. Erickson, G.R., Gimble, J.M., Franklin, D.M., Rice, H.E., Awad, H., and Guilak, F. Chondrogenic potential of adipose tissue-derived stromal cells in vitro and in vivo. Biochem. Biophys. Res, Commun. 290, 763, 2002.
9. Awad, H.A., Halvorsen, Y.D., Gimble, J.M., and Guilak, F. Effects of transforming growth factor beta1 and dexamethasone on the growth and chondrogenic differentiation of adipose-derived stromal cells. Tissue Eng. 9, 1301, 2003.
10. Huang, J.I., Zuk, P.A., Jones, N.F., Zhu, M., Lorenz, H.P., Hedrick, M.H., and Benhaim, P. Chondrogenic potential of multipotential cells from human adipose tissue. Plast. Reconstr. Surg. 113, 585, 2004.
11. Mizuno, H., Zuk, P.A., Zhu, M., Lorenz, H.P., Benhaim, P., and Hedrick, M.H. Myogenic differentiation by human processed lipoaspirate cells. Plast. Reconstr. Surg. 109, 199, 2002.
12. Rodriguez, A.M., Pisani, D., Dechesne, C.A., Turc-Carel, C., Kurzenne, J.Y., Wdziekonski, B., Villageois, A., Bagnis, C., Breittmayer, J.P., Groux, H., Ailhaud, G., and Dani, C. Transplantation of a multipotent cell population from human adipose tissue induces dystrophin expression in the immunocompetent mdx mouse. J. Exp. Med. 201, 1397, 2005.
13. Strem, B.M., Zhu, M., Alfonso, Z., Daniels, E.J., Schreiber, R., Begyui, R., Maclellan, W.R., Hedrick, M.H., and Fraser, J.K. Expression of cardiomyocytic markers on adipose tissue-derived cells in a murine model of acute myocardial injury. Cytotherapy 7, 282, 2005.
14. Planat-Benard, V., Menard, C., Andre, M., Puceat, M., Perez, A., Garcia-Verdugo, J.M., Penicaud, L., and Casteilla, L. Spontaneous cardiomyocyte differentiation from adipose tissue stroma cells. Circ. Res. 94, 223, 2004.
15. Safford, K.M., Hicok, K.C., Safford, S.D., Halvorsen, Y.D., Wilkison, W.O., Gimble, J.M., and Rice, H.E. Neurogenic differentiation of murine and human adipose-derived stromal cells. Biochem. Biophys. Res. Commun. 294, 371, 2002.
16. Ashjian, P.H., Elbarbary, A.S., Edmonds, B., De Ugarte, D., Zhu, M., Zuk, P.A., Lorenz, H.P., Benhaim, P., and Hedrick, M.H. 2003. In vitro differentiation of human processed lipoaspirate cells into early neural progenitors. Plast. Reconstr. Surg. 111, 1922, 2003.
17. Kang, S.K., Lee, D.H., Bae, Y.C., Kim, H.K., Baik, S.Y., and Jung, J.S. Improvement of neurological deficits by intracerebral transplantation of human adipose tissue-derived stromal cells after cerebral ischemia in rats. Exp. Neurol. 183, 355, 2003.
18. van Harmelen, V., Skurk, T., and Hauner, H. Primary culture and differentiation of human adipocyte precursor cells. Methods Mol. Med. 107, 125, 2005
19. Planat-Benard, V., Silvestre, J.S., Cousin, B., Andre, M., Nibbelink, M., Tamarat, R., Clergue, M., Manneville, C., Saillan-Barreau, C., Duriez, M., Tedgui, A., Levy, B., Penicaud, L., and Casteilla, L. Plasticity of human adipose lineage cells toward endothelial cells: physiological and therapeutic perspectives. Circulation 109, 656, 2004.
20. Miranville, A., Heeschen, C., Sengenes, C., Curat, C.A., Busse, R., and Bouloumie, A. Improvement of postnatal neovascularization by human adipose tissue-derived stem cells. Circulation 110, 349, 2004.
21. Cao Y, Sun Z, Liao L, Meng Y, Han Q, Zhao RC. 2005. Human adipose tissue-derived stem cells differentiate into endothelial cells in vitro and improve postnatal neovascularization in vivo. Biochem Biophys Res Commun. 332:370-9.
22. Yoshimura, K., Shigeura, T., Matsumoto, D., Sato, T., Takaki, Y., Aiba-Kojima, E., Sato, K., Inoue, K., Nagase, T., Koshima, I, and Gonda, K. Characterization of Freshly Isolated and Cultured Cells Derived from the Fatty and Fluid Portions of Liposuction Aspirates. J. Cell. Physiol., in press.
23. Lendeckel, S., Jodicke, A., Christophis, P., Heidinger, K., Wolff, J., Fraser, J.K., Hedrick, M.H., Berthold, L., and Howaldt, H.P. Autologous stem cells (adipose) and fibrin glue used to treat widespread traumatic calvarial defects: case report. J. Craniomaxillofac. Surg. 32, 370, 2004.
24. Garcia-Olmo, D., Garcia-Arranz, M., Herreros, D., Pascual, I., Peiro, C., Rodriguez-Montes, J.A. A phase I clinical trial of the treatment of Crohn's fistula by adipose mesenchymal stem cell transplantation. Dis. Colon Rectum 48, 1416, 2005.
25. Ersek, R.A., Chang, P., and Salisbury, M.A. Lipo layering of autologous fat: an improved technique with promising results. Plast. Reconstr. Surg. 101, 820, 1998.
26. Shiffman, M.A., and Mirrafati, S. Fat transfer techniques: the effect of harvest and transfer methods on adipocyte viability and review of the literature. Dermatol. Surg. 27, 819, 2001.
27. von Heimburg, D., Hemmrich, K., Haydarlioglu, S., Staiger, H., and Pallua, N. Comparison of viable cell yield from excised versus aspirated adipose tissue.
Cells Tissues Organs 178, 87, 2004.
28. Masuda, T., Furue, M., Matsuda, T. Novel strategy for soft tissue augmentation based on transplantation of fragmented omentum and preadipocytes. Tissue Eng. 10, 1672, 2004.
29. Strawford, A., Antelo, F., Christiansen, M., and Hellerstein, M.K. Adipose tissue triglyceride turnover, de novo lipogenesis, and cell proliferation in humans measured with 2H2O. Am. J. Physiol. Endocrinol. Metab. 286, E577, 2004.
30. Rehman, J., Traktuev, D., Li, J., Merfeld-Clauss, S., Temm-Grove, C.J., Bovenkerk, J.E., Pell, C.L,, Johnstone, B.H., Considine, R.V., and March, K.L. Secretion of angiogenic and antiapoptotic factors by human adipose stromal cells. Circulation 109, 1292, 2004.
31. Considine, R.V., Nyce, M.R., Morales, L.M., Magosin, S.A., Sinha, M.K., Bauer, T.L., Rosato, E.L., Colberg, J., and Caro, J.F. Paracrine stimulation of preadipocyte-enriched cell cultures by mature adipocytes. Am. J. Physiol. 270, E895, 1996.


Figure Legends

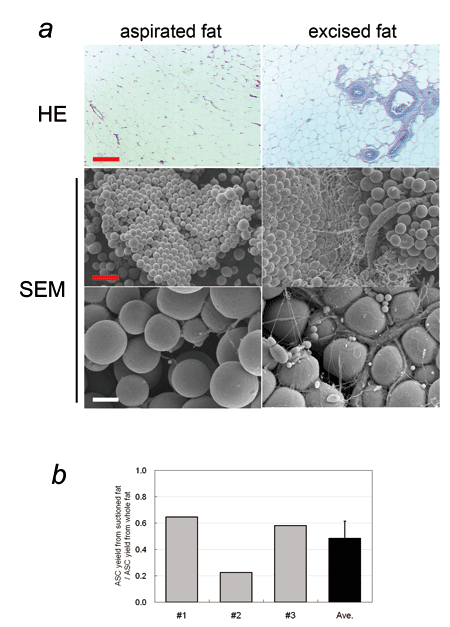

Fig. 1. Comparison of human aspirated fat and excised whole fat obtained from a single site of a single patient.
(a) Histology of aspirated fat and excised fat. (HE stained microphotographs and SEM photos; red scale bar = 200 μm, white scale bar = 40 μm). The basic structure of adipose tissue was preserved in the aspirated fat, while vascular vessels, especially those of large size, were significantly less detected in aspirated fat compared to the excised fat. It is well known that the honeycomb structures of vascular and neural perforator networks are left intact in aspirated sites after liposuction operation (Fig. S1).
(b) ASC yield from aspirated fat and excised fat. Both tissues were processed for isolation of SVFs, which were then cultured for 1 week. Ratios of ASC yield from aspirated fat to that from excised fat of the same volume were calculated; data from three patients (#1-#3) and their average value were demonstrated. ASC yield from aspirated fat was significantly less (48 ± 13 %) than that from excised fat.

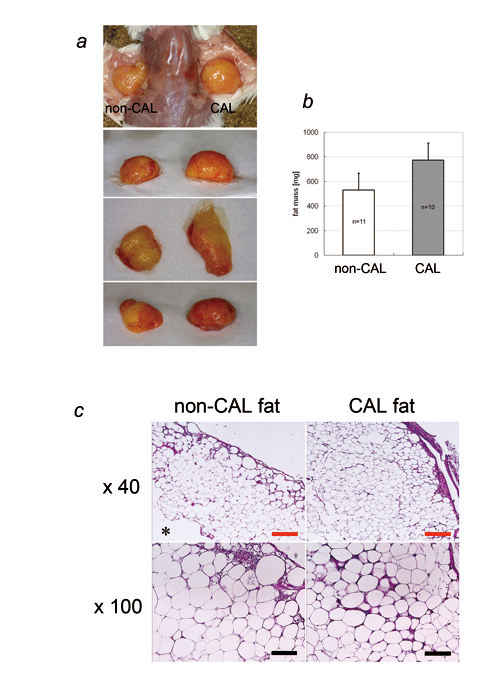

Fig. 2. CAL and non-CAL using human aspirated fat and SVF.
(a) Photographs of CAL fat (right side) and non-CAL fat (left side) in SCID mice. Human aspirated fat was transplanted with (CAL fat) or without (non-CAL fat) human SVFs freshly isolated from the same aspirated fat. Transplanted fat was harvested at 4 weeks.
(b) Weight of harvested CAL fat and non-CAL fat. The weight of CAL fat was significantly greater than that of non-CAL fat (p < 0.05).
(c) Histology of CAL fat and non-CAL fat samples (red scale bar = 250 μm, black scale bar = 100 μm). Central necrosis (*) was almost always seen in non-CAL fat, and the surviving layer of CAL fat was thicker than that of non-CAL fat. At higher magnification, microvasculature was more frequently seen in CAL fat, especially in the outer layers, than in non-CAL fat.

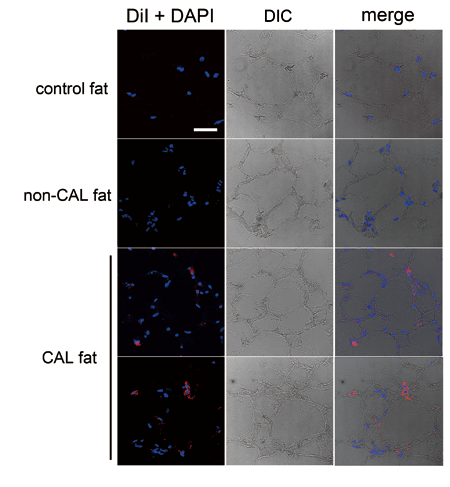

Fig. 3. Histology of CAL fat using human aspirated fat and DiI-labeled SVF. Normal excised fat and non-CAL fat were also used for comparison. Nuclei were stained with DAPI. In CAL fat, DiI-labeled cells, which are supposed to be co-transplanted ASCs, are located between mature adipocytes and in interstitial connective tissue. The frequency of DiI-positive cells was 10%?30%, though it varied among samples and at locations in a sample. DIC: differential interference contrast. Scale bar = 50 μm. The right column shows merges of DiI and DAPI, and DIC images.

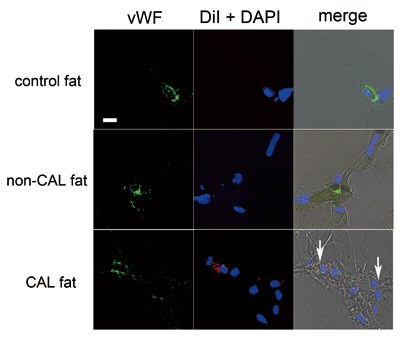

Fig. 4. Immunohistology of CAL fat using human aspirated fat and DiI-labeled SVF. Normal excised fat (control fat) and non-CAL fat were also assessed for comparison. Endothelial cells were immunostained with vWF. Nuclei were stained with DAPI. Cells double-positive for vWF and DiI (arrows), which were suggested to be vascular endothelial cells differentiated from co-transplanted DiI-labeled ASCs, were observed in connective tissue or between adipocytes. Scale bar = 10 μm. The right column shows merges of immunostaining of vWF, DiI, DAPI, and DIC images.

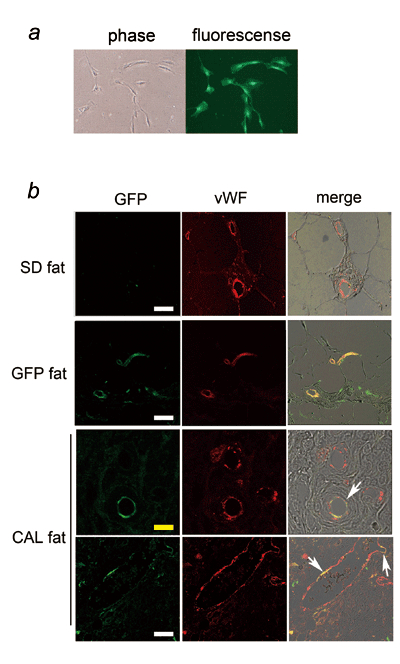

Fig. 5. CAL fat in rat models (fragmented fat of SD rat and GFP-SVF).
(a) Cultured GFP-ASCs (phase-contrast and fluorescence images). When GFP-SVF cells were cultured, all adherent cells were GFP-positive.
(b) Immunohistology of CAL fat in rat models. GFP was detected by immunostaining with anti-GFP antibody. Adipose tissue of SD rat and GFP rat were also demonstrated for comparison. Vascular endothelial cells are only vWF-positive in SD fat, while they were all double positive for vWF and GFP in GFP fat. In CAL fat, capillaries with endothelial cells partly or entirely double positive for GFP and vWF (arrows) were detected, suggesting that they were differentiated from co-transplanted GFP-ASCs. The other endothelial cells were only vWF-positive, suggesting that they were derived from the host SD rat. White scale bar = 30 μm, yellow scale bar = 10 μm. The right column shows merges of immunostaining of vWF, DiI, DAPI, and DIC images.


Fig. S1. Honeycomb structures in subcutaneous layers after liposuction. Vascular and neural perforators arising from the fascia or muscle are left intact after suctioning. Liposuction is usually performed with a metal cannula after infiltration of saline solution containing lidocaine and adrenaline. This fact clearly supports that aspirated fat contains fewer vascular structures compared to excised fat.
